GrindLazer HP DC1013 G DCS Gas-Powered Scarifier (Bare)

$20,623.00

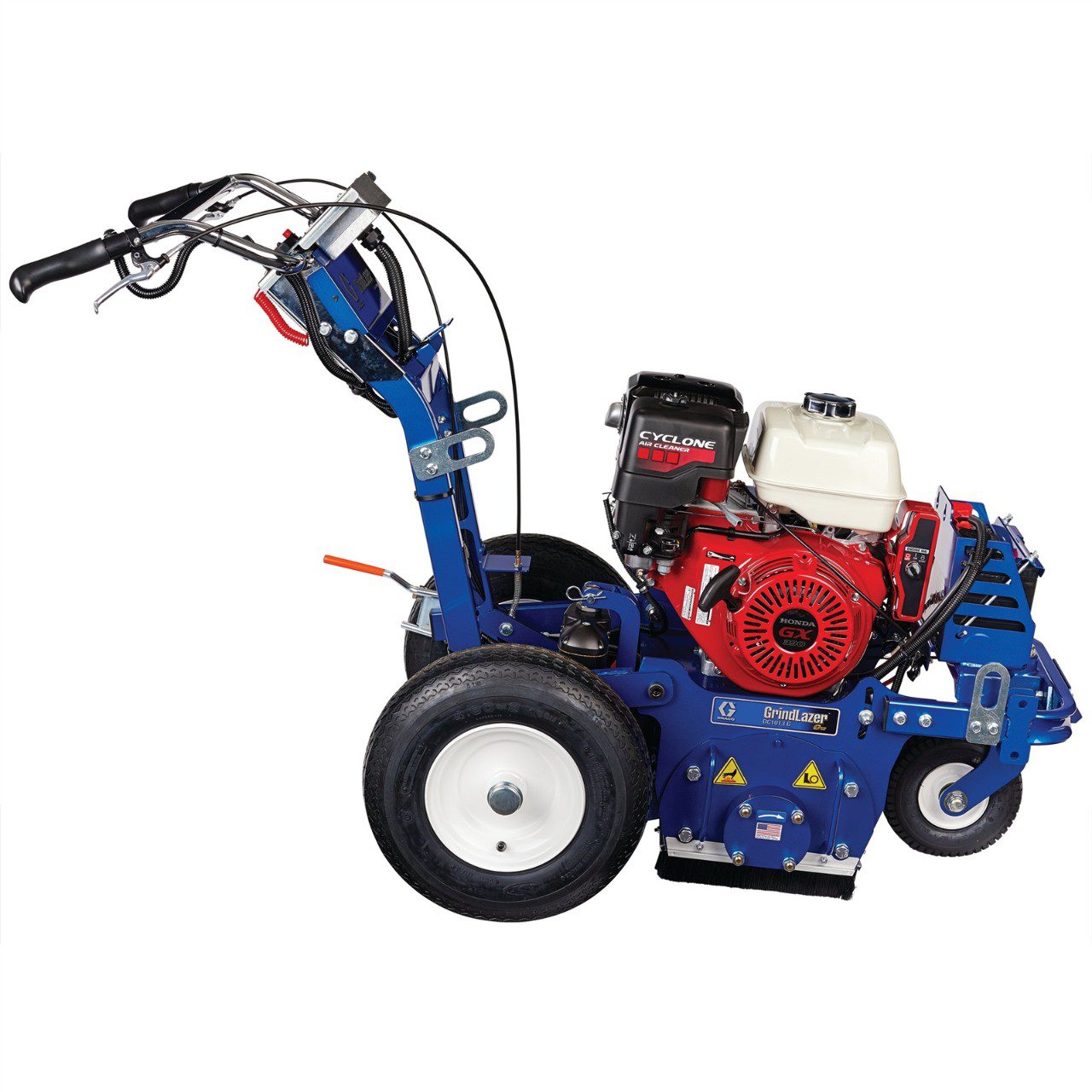

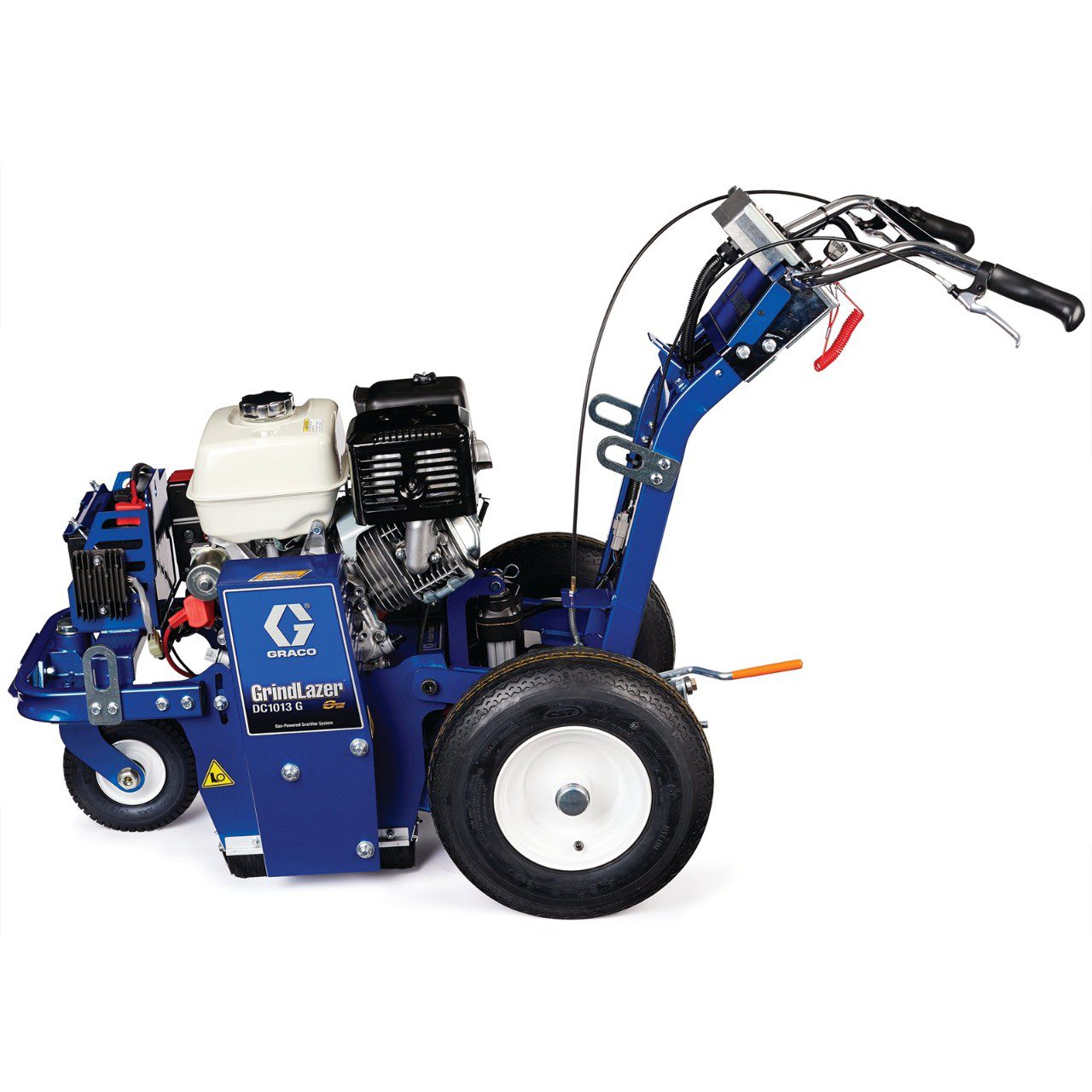

The GrindLazer HP DC1013 G DCS provides high production line removal with a 13 HP Honda engine, electric start, 10 inch (25.4 cm) maximum cut widths and large selection of cutters. The rugged, innovative design delivers reliability and the EasyGlide Wheel Mount System allows it to be used as a LineLazer as well.

SKU: 25N658 Category:

Features

PRODUCT BROCHURE

The GrindLazer HP DC1013 G DCS provides high production line removal with a 13 HP Honda engine, electric start, 10 inch (25.4 cm) maximum cut widths and large selection of cutters. The rugged, innovative design delivers reliability and the EasyGlide Wheel Mount System allows it to be used as a LineLazer as well.
  • Depth Control System
    • Eliminate Measuring & Guesswork
    • Quickly & easily adjust the cutter depth to align with ever-changing terrain
    • Accurate cut depth for tape or thermoplastic inlays
    • Eliminates damage due to “dropped drums”
  • DCS Controller
    • Ultimate Control & Application Flexibility
    • User settable “zero point” to match cutter assembly
    • Displays “active depth”
    • English and metric units
    • Robust design stands up the harsh abuse
    • Fully-encapsulated electronic components
    • Ultimate protection from vibration, jobsite and weather conditions
  • Remote Momentary Switch
    • Total Operator Control
    • Control cut depth while keeping both hands on the GrindLazer
  • InstaCut Technology

    • Ultimate Removal or Inlay Flexibility
    • Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
    • Allows deck to “float” when on uneven surfaces
    • No-tool system
  • Vibration Reduction Technology
    • All-Day Comfort
    • Up to 4x less vibration than the competition
    • Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
    • Comfort-grip handlebars for precise steering
  • Durable 13 HP Honda® Power With Cyclone Filter

    • Contractor-Preferred Power
    • Cyclone filter protects the engine from harmful airborne dust
  • Extreme-Duty ProStart System
    • Safer Operation
    • Easy cutter start/stop with centrifugal clutch – one of the safest units on the market today
    • Easy cold weather starting Provides longer belt life and eliminates broken recoils
  • TriBelt Drive System
    • Maximum Road Handling
    • 3-cog belt design optimizes power transfer and eliminates costly downtime
  • Fat Track Front Swivel Wheel

    • Fast, Easy Turning
    • Proven front caster wheel system makes turning fast and easy
    • Maneuver curves better No need to “muscle it” while moving
  • Additional Features
    • EasyGlide Wheel Mount System
    • Dust-Free Vacuum Port
    • LineDriver Compatible

Specifications & Documents

Technical Specifications

Air Filter Type Cyclone
Cut Direction Forward
Cutter Drum Diameter (in) 7
Cutter Type Drum
Depth Adjustment Depth Control System (DCS)
Engine Brand Honda
Engine Model GX390
Engine Size (HP) 13
Engine Start Type Electric Start
LineDriver Required Optional
Maximum Cut Rate (ft2/hr) 800
Maximum Cut Rate w/ LineDriver (ft2/hr) 1700
Maximum Cut Width (in) 10
Model GrindLazer
Product Series High Production
Series High Production Series
Type Concrete Scarifier
Vacuum Port Yes
Water Connection Optional
Weight 208 kg
Dimensions 82 × 178 × 134 cm
