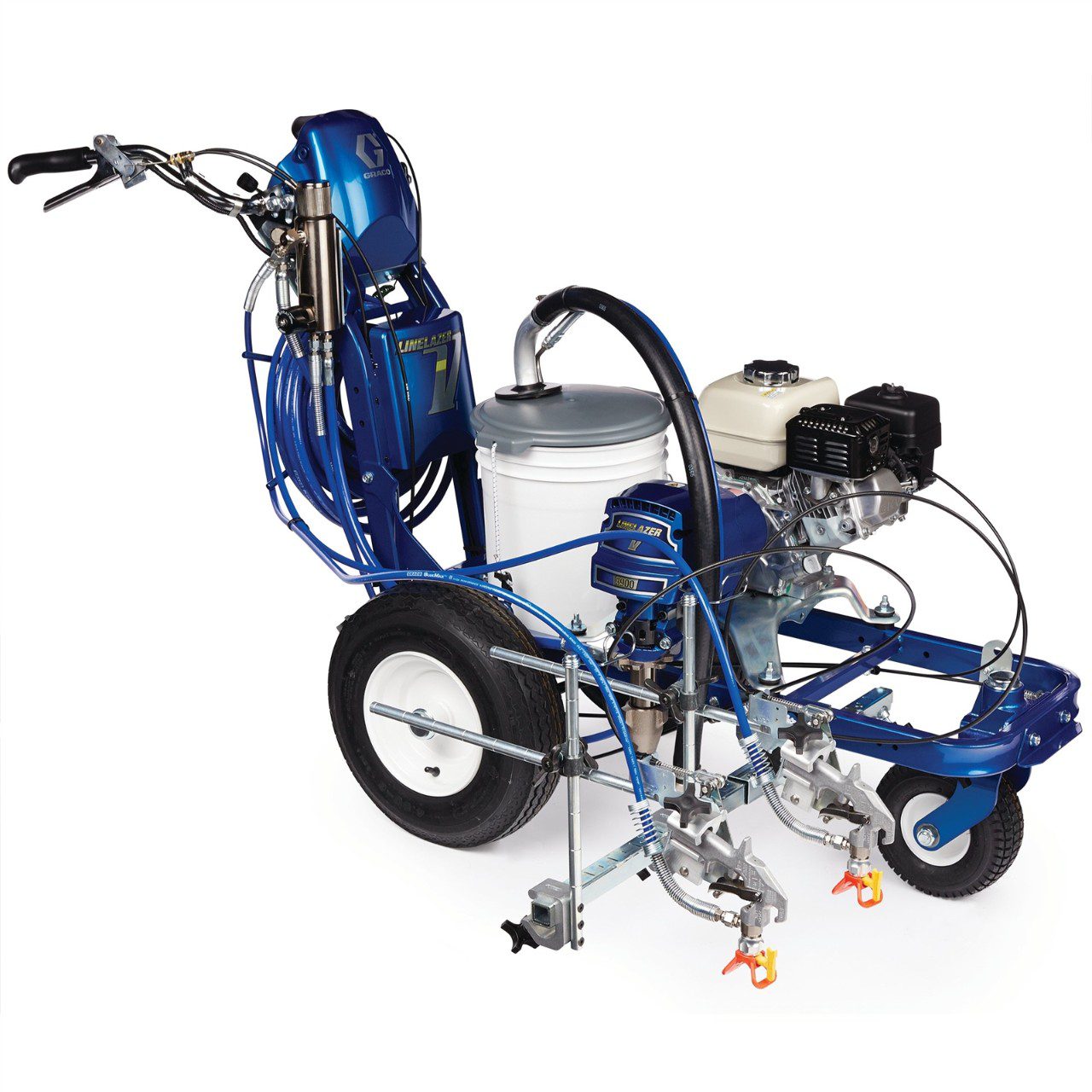

Graco LineLazer V 3900 Standard Series Gas Airless Line Striper, 2 Manual Guns 17H450

$16,940.00

When it’s time for 1 or 2-gun airless line striping performance, the LineLazer V 3900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.

SKU: 17H450 Category:

FEATURES

When it’s time for 1 or 2-gun airless line striping performance, the LineLazer V 3900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-colour, single or dual gun striping solution.

  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred – excellent power and proven reliability
    • Oil alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • QuikSelect Gun Selector
    • Simple Gun Control
    • Independently control of two guns with one lever – solid/skip
  • Endurance Chromex Pump
    • Reliable, Long Life Pump
    • Industry best pump performance – field proven design
    • Handle the most demanding materials with long life rod treatment
    • 4X harder than ordinary chrome
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs

SPECIFICATIONS & DOCUMENTS

Technical Specifications

Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Model GX120
Fuel Tank Capacity (l) 2.5
Gun Activation Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (l/min) 4.7
Maximum Sound Pressure Level (dB(A)) 85.5
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.6350
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Model LineLazer V
Number of Colours One Colour
Number of Guns 2
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (mm) 1130.3000
Overall Length (cm) 173.36
Overall Length (mm) 1733.55
Overall Width (cm) 87.0
Overall Width (mm) 869.9500
Power Rating (HP) 4
Power Rating (kW) 2.98
Power Source Gas
Product Series Standard
Pump Type Endurance
Series 3900
Type Walk-Behind Line Striper
Weight (kg) 104
Product Manuals

What’s Included

PART NO. DESCRIPTION QTY UNIT
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8″ X 3′ 1 ea

Repair Parts

PART NO. DESCRIPTION
185381 HOSE, NYLON
245103 Q KIT REPAIR, DRAIN VALVE
245797 KIT, REPAIR, HOSE
277069 Q GB KIT, REPAIR, PUMP, 3900
117285 PACKING, O-RING
181072 Inlet Strainer, SST Cap Double Screen, 1 in
128783 SWITCH,ROCKER, DPDT
15C766 TUBE, DIFFUSION
301517 TUBE, SUCTION
Weight 153 kg
Dimensions 99 × 188 × 135 cm
Brand

Graco

Product Type

Linemarker, Walk-Behind Line Striper

Power Source

Gas / petrol

Gun Activation

Manual

Number Guns

Double

Solution

Field Marking, Pavement Marking
